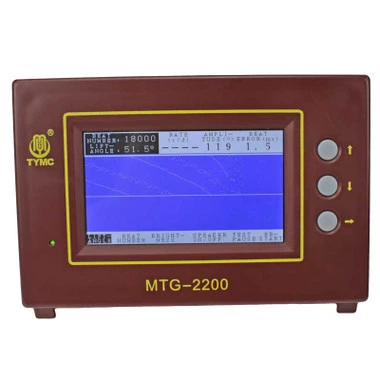

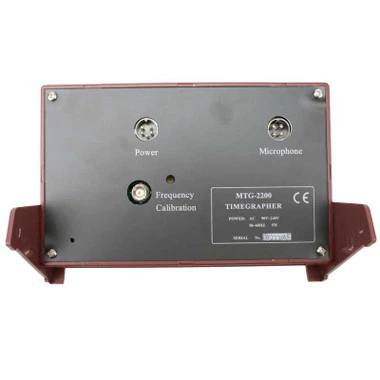

TYMC Timegrapher MTG-2200 Personal Watch Timer Tester

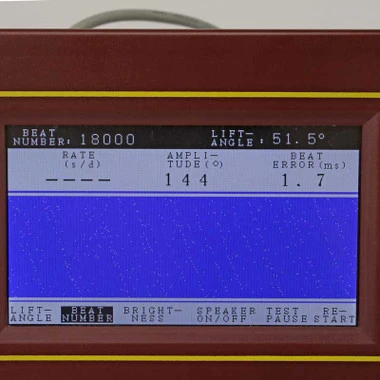

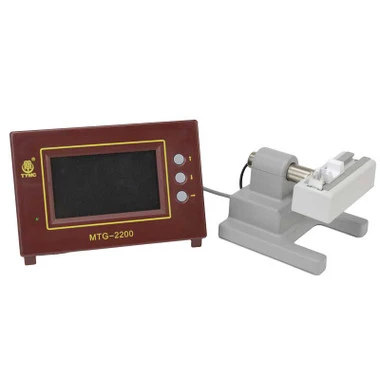

Test the performance of mechanical watches with ease. The MTG-2200 tests and displays Amplitude, along with displaying on the 5″ LCD screen the beat noise, rate in seconds per day is displayed as either fast or slow and the beat error in “ms” milli-seconds is also tested. Beat rates from 18000, 19800, 21600, 25200, 28800 up to 36000 bph of mechanical watches can be tested. The beat rates are automatically identified by this tester in just a few seconds or you can change and manually set the beat rate to be tested. The lift angle is pre-set to default value of 52 degrees. If you know the correct lift angle of the watch you are testing you can manually set the correct lift angle to get the most accurate Amplitude measurement possible. Uses the standard microphone rotates to six different positions. While testing using the TYMC tester, you can hear the sound of the beat noise from a built in speaker, you can turn on and off the sound as you wish.

• single phase power supply AC100V-240V (power consumption is about 8 watts)
• Displays daily rate in seconds per day (+/-300 s/d), Accurate to (+/-1 s/d)
• Amplitude: 90 – 350 degree, allowable tolerance (+/-3 degree)
• Beat error: 0-4.0ms, allowable tolerance (+/-0.1ms)
• Life angle: 20-70 degree, ex-works value: 52 degree



Comparison Chart for Timegrapher Timing Machine

	MTG-500	MTG-1000	MTG-2200	MTG-4000A	MTG-5000	MTG-1100	MTG-9900A
Beat Rates	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	18,000, 19,800, 21,600, 25,200, 28,800, 36,000	12,000, 14,400, 18,000, 19,800, 21,600, 25,200, 28,800, 36,000
Measuring Facilities	Beat Rate, Beat Error, Beat Number	Beat Rate, Beat Error, Beat Number	Beat Rate, Beat Error, Beat Number, Amplitude	Beat Rate, Beat Error, Beat Number, Amplitude	Beat Rate, Beat Error, Beat Number, Amplitude, maximum difference of rate and amplitude of the tested positions long-term monitoring (rate/amplitude)	Beat Rate, Beat Error, Beat Number, Amplitude	Beat Rate, Beat Error, Beat Number, Amplitude
Signal Gain Level	Adjusted Automatically	Automatic or Manual	Automatic by TYAPS signal processing unit and filters side noise & background noise	Automatic by TYAPS signal processing unit and filters side noise & background noise	Automatic by TYAPS signal processing unit and filters side noise & background noise	Automatic by TYAPS signal processing unit and filters side noise & background noise	Automatic by TYAPS signal processing unit and filters side noise & background noise
Beat Rate Range	+/-300 s/d	+/-300 s/d	+/-300 s/d	+/-300 s/d	+/-300 s/d	+/-300 s/d	+/-300 s/d
Beat Rate Resolution & Accuracy	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d	1 s/d & +/-1 s/d
Beat Error Range	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms	0.0 ms – 4.0 ms
Beat Error Resolution & Accuracy	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms	0.1 ms & +/-0.1 ms
Amplitude Range	Not Available	90° – 350°	90° – 350°	90° – 350°	90° – 350°	90° – 350°	90° – 350°
Amplitude resolution	Not Available	1°	1°	1°	1°	1°	1°
Amplitude Accuracy	Not Available	+/- 3°	+/- 3°	+/- 3°	+/- 3°	+/- 3°	+/- 3°
Amplitude Lift Angle Adjustment	Not Available	30°-60° / Resolution: 0.1°	20°-70° / Resolution: 0.1°	30°-60° / Resolution: 0.1°	30°-60° / Resolution: 0.1°	20°-70° / Resolution: 0.1°	20°-70° / Resolution: 0.1°
Display Type & Resolution	Backlit LCD / 192 x 64	Backlit LCD / 240 x 128	5″ Color Backlit LCD / 480×272	7″ Color backlit LCD / 480×234	7″ Color backlit LCD / 480×234	4.3″ Backlit LCD / 480×272	7″ Digital Color LCD Touch Screen / 800×640
Display Size & Diagram Length	101mm x 36mm / 192 horizontal	112mm x 60mm / 240 horizontal	112mm x 60mm / 480 horizontal & 960 when divided	153mm x 86mm / 480 horizontal	153mm x 86mm / 480 horizontal & 960 when divided	112mm x 60mm / 240 horizontal	153mm x 86mm / 480 horizontal
Diagram Display	Horizontal	Horizontal	Horizontal, Horizontal Two Area, Vertical	horizontal w/5 color modes	Horizontal w/3 color modes. Display is divisible horizontally to double length of diagram	Horizontal	Horizontal HD, Horizontal Thickened, Vertical HD
Time Base & Stability	Crystal Oscillator / +/- 0.3 s/d	Crystal Oscillator / +/- 0.3 s/d	+/- 0.1 s/d	Temperature Compensated Crystal Oscillator / +/- 0.1 s/d	Temperature Compensated Crystal Oscillator / +/- 0.1 s/d	+/- 0.1 s/d	+/- 0.1 s/d
Case Dimensions	190 x 115 x 100mm	200 x 135 x 100mm	200 x 135 x 100mm	260 x 170 x 115mm	240 x 195 x 135mm	192 x 120 x 98mm	214 x 185 x 135mm
Power Supply	110v – 250v	110v – 250v	100v – 240v	110v – 250v	110v – 250v	100v – 240v	100v – 240v
Microphone	6-position ROTOMIC-1	6-position ROTOMIC-1	6-position ROTOMIC-2	6-position ROTOMIC-2	6-position ROTOMIC-2	6-position ROTOMIC-1	6-position ROTOMIC-3
Optional Thermoprinter & Automatic Microphone	No	No	Yes	Yes	Yes	No	Yes
6 Position Programmed Test Mode	Not Available	Not Available	1-6 Selectable positions. 10-50s measuring time per position	1-6 Selectable positions. 10-50s measuring time per position	1-6 Selectable positions. 10-50s measuring time per position	1-6 Selectable positions. 10-50s measuring time per position	1-6 Selectable positions. 10-50s measuring time per position
6 Position Display Results	Not Available	Not Available	beat rate, beat error, amplitude of each position, maximum difference of beat rate and amplitude within test positions.	beat rate, beat error, amplitude of each position, maximum difference of beat rate and amplitude within test positions.	beat rate, beat error, amplitude of each position, maximum difference of beat rate and amplitude within test positions.	beat rate, beat error, amplitude of each position, maximum difference of beat rate and amplitude within test positions.	beat rate, beat error, amplitude of each position, maximum difference of beat rate and amplitude within test positions.
Additional Features			Sound simulation of beat noise, Pause function	Stores 720 beats. Pause & Shift function.	Stores 2048 beats. Pause & Shift function. Long-term monitoring mode for rate & amplitude. Selectible graphic or numeric resolution.		Pause & shift function, Long-term monitoring mode for rate & amplitude, programming, storing data
